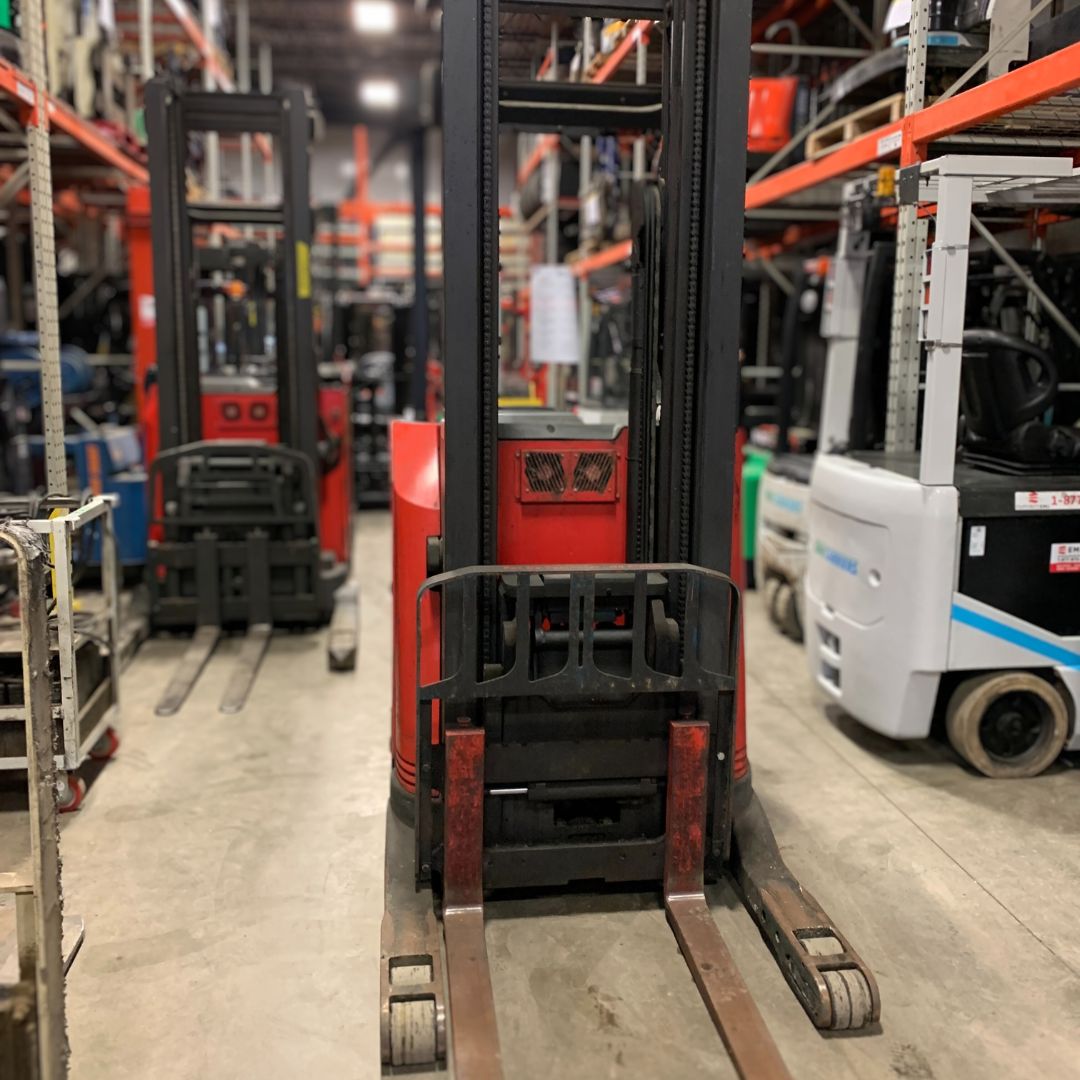

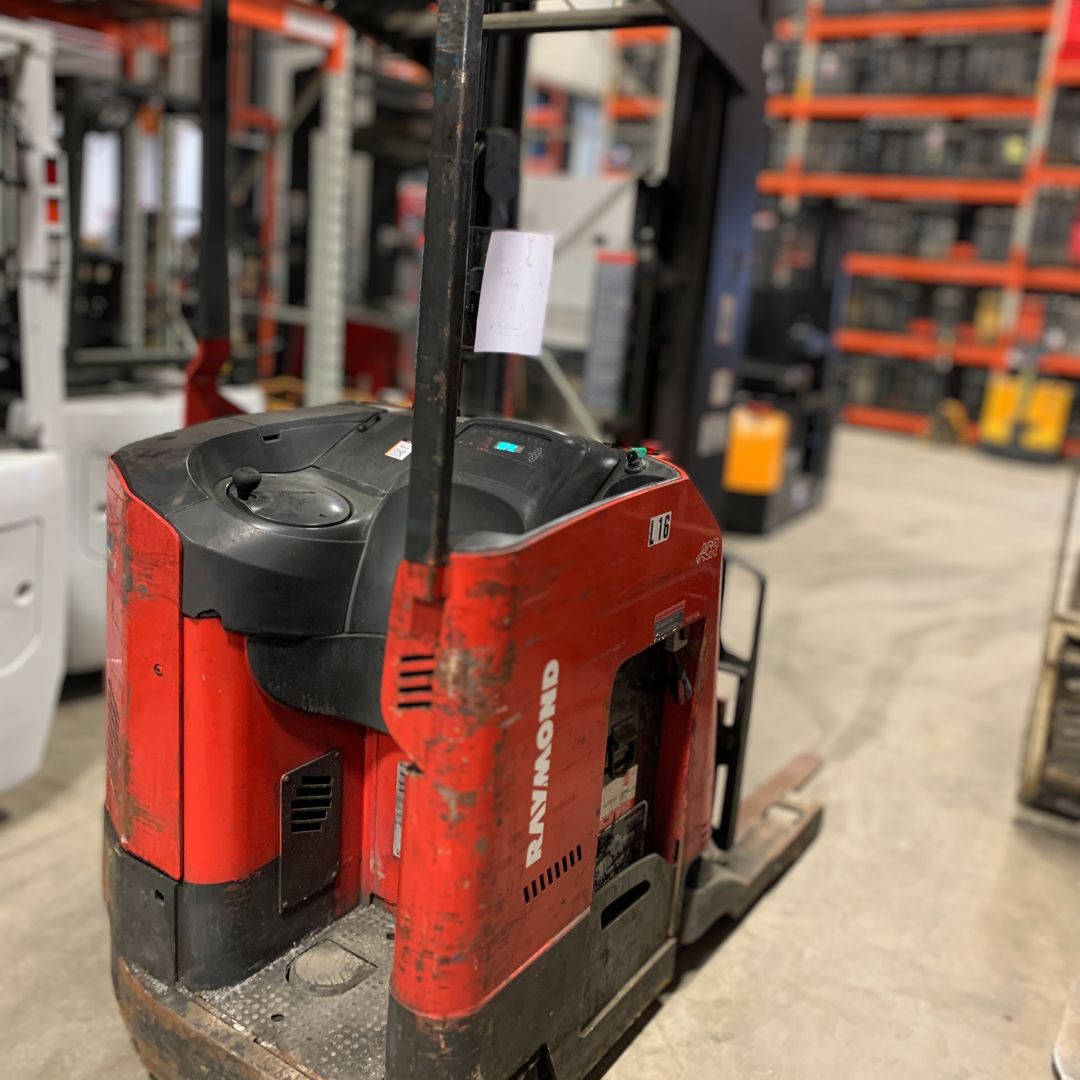

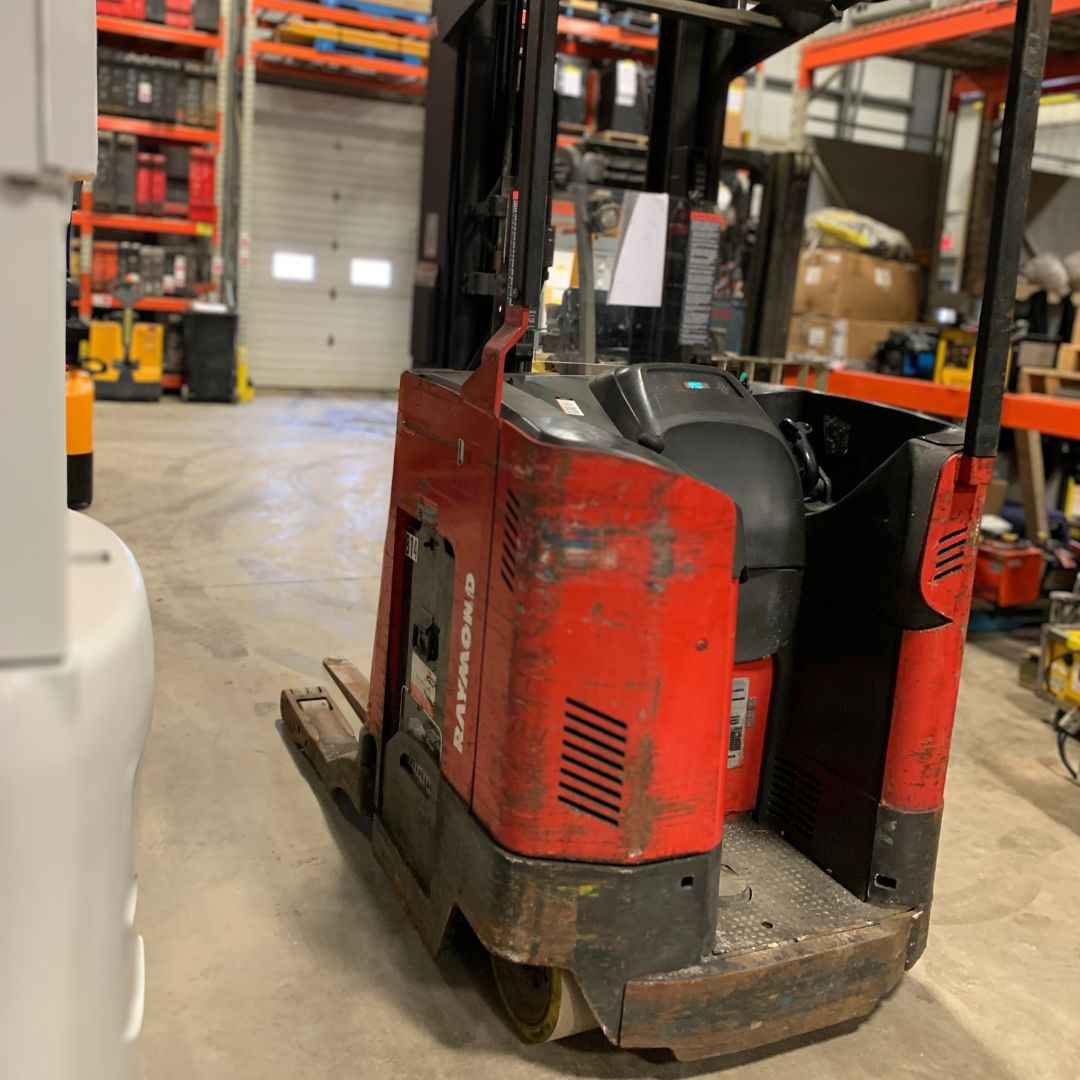

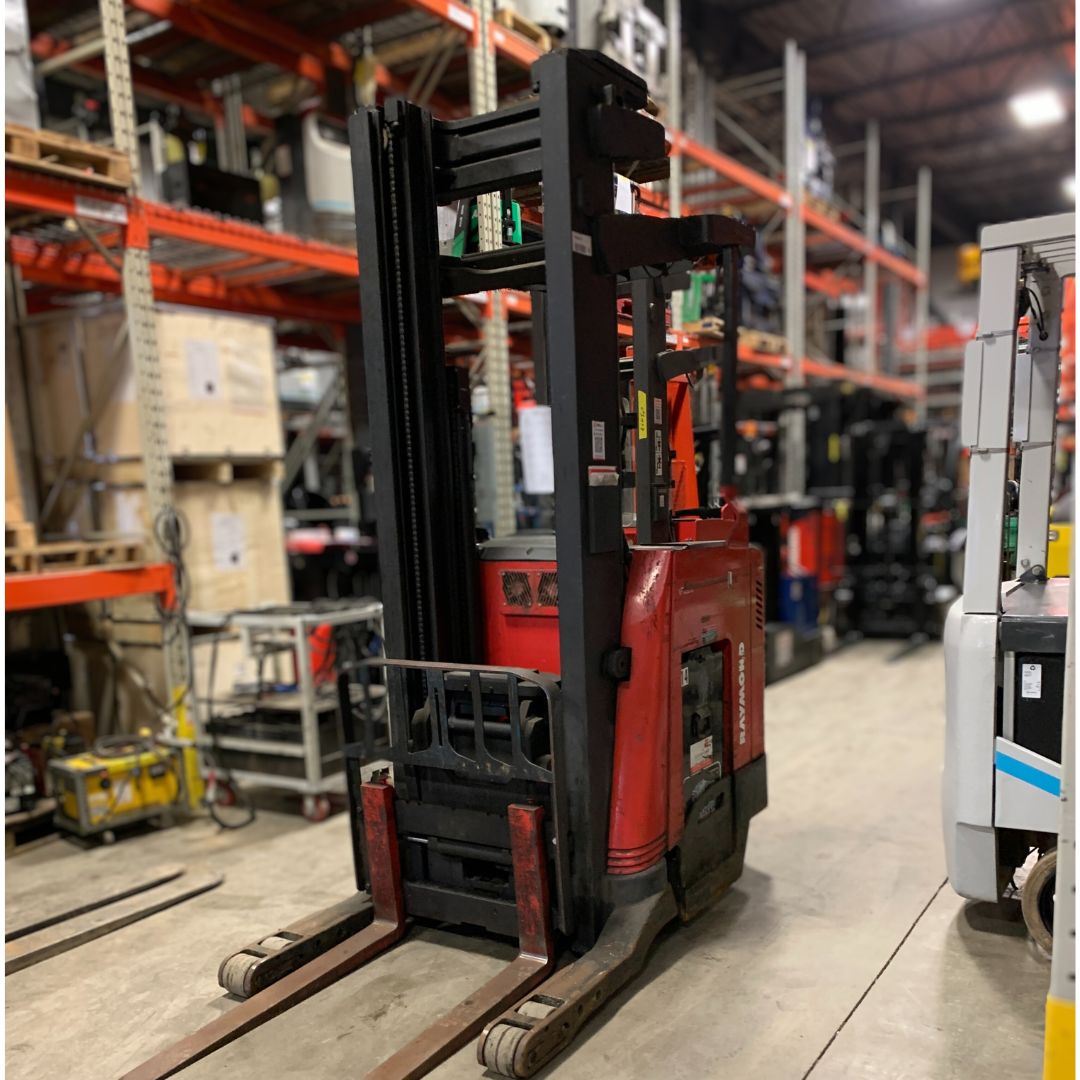

Single Pantograph Narrow Aisle Forklift - 4500 lb - R45TT

Brand: Raymond
Model: 750-R45TT
Capacity: 4,500 lbs
Mast: 107x241
Hours: 6,690 h
Year: 2012
Fork Length: 42 or 48"

Electrical System: Transistorized

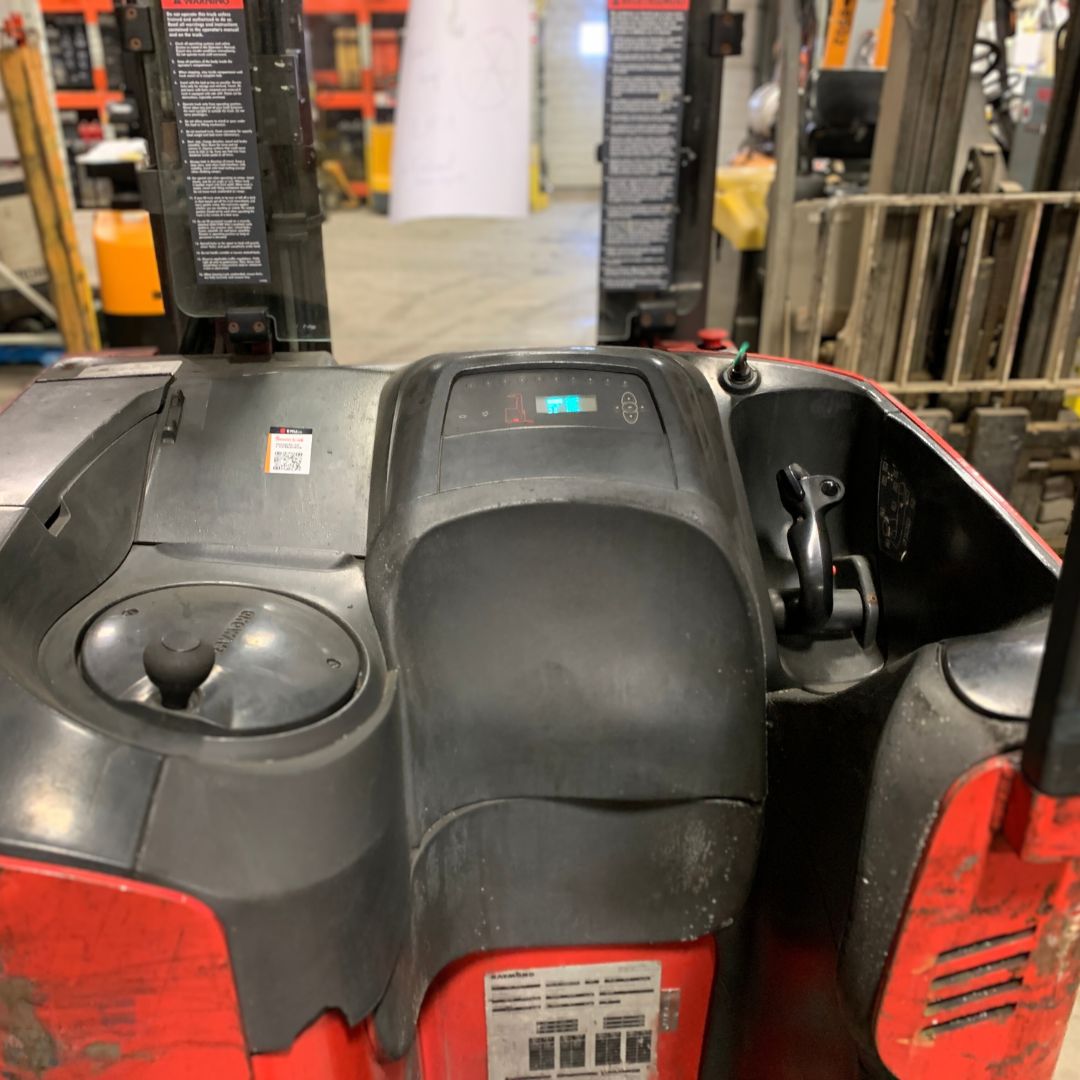

Dashboard Integrated Code Display
Hour Meter
Battery Discharge Indicator
Low Voltage Lift Cut-Out
Traction Motor: AC
Lift Motor: DC
Battery Connector Type: SB, Amperage: 350, Color: Gray
Battery Compartment on Rollers for Side Extraction

Fork Carriage: Hook-Type
Load Backrest: 36 in
Total Number of Hydraulic Functions: 4
Number of Auxiliary Functions on the Fork Carriage: Internal: 1
Fork Tilt
Traction Wheel Material: Polyurethane
Wheel Traction Type: Smooth
Operator Guard: Glass
Power Assisted Driving: Hydraulic
Amber Strobe Light
Driving Direction: Customer Selectable
Operator Position: Standing
Control: Joystick
Reach Type: Scissor Lift

***PERFORMANCE AND CAPACITY CHARACTERISTICS***
Net capacity with a 24" load center at full height: 4,300 lbs
Net capacity with a 24" load center at 225" height: 4,500 lbs

Electrical System Voltage: 36V
Mast Height in Closed Position: 105 in
Maximum Fork Height: 241 in
Overall Truck Height: 105 in
Mast Type: Full Free Lift
Number of Mast Sections: 3
Carriage Width: 31.75 in
Outside Outrigger Width: 52 in
Inside Outrigger Width: 41 in
Forklift Length (Back to Front of Forks): 58 in
Forklift Length (Back to Front of Load Wheels): 76.5 in
Unladen Weight without Battery: 5906 lbs
Minimum Battery Weight: 907 lbs
Maximum Battery Weight: 1043 lbs
Battery Compartment Dimensions: Length: 42.25 in, Width: 16.12 in, Height: 31 in
