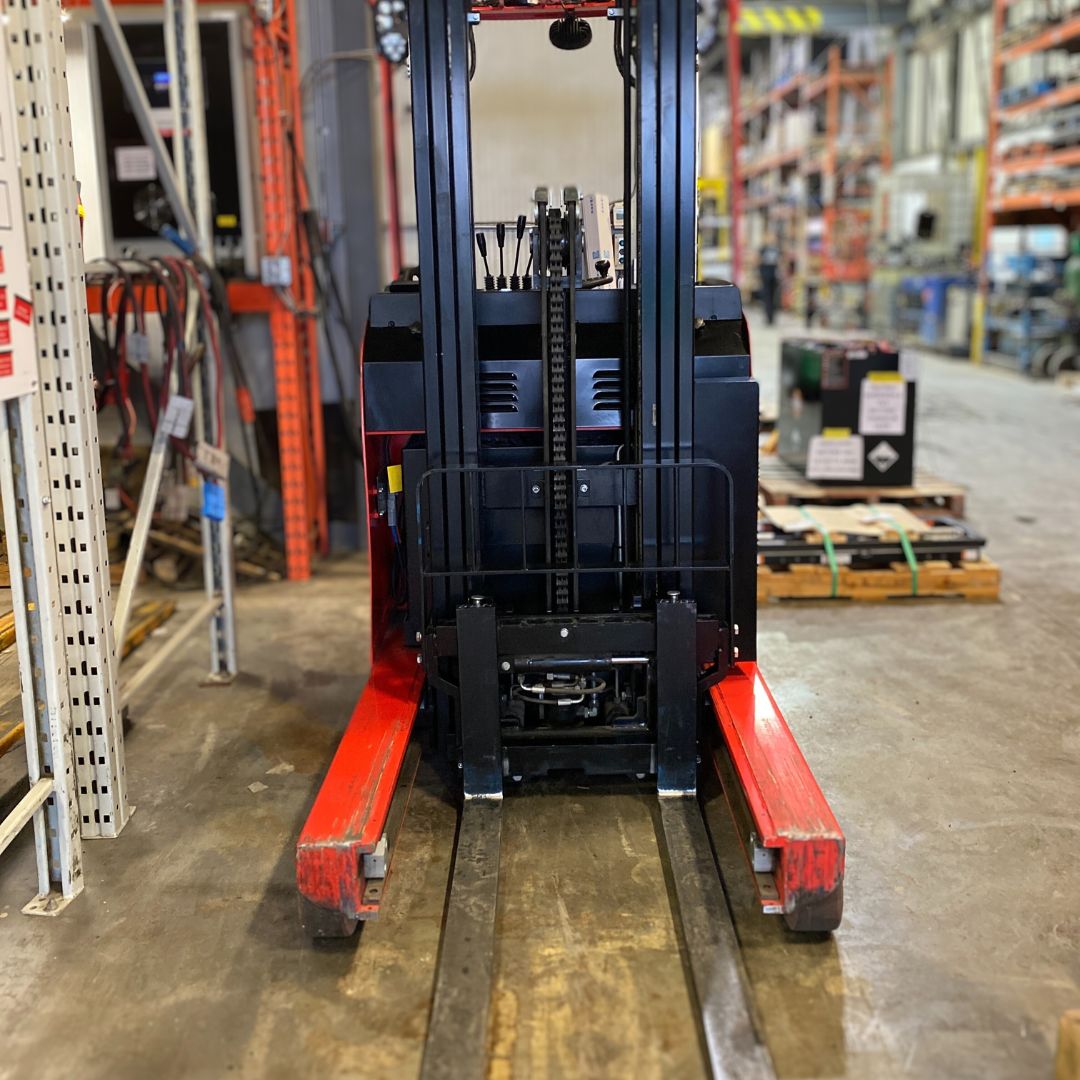

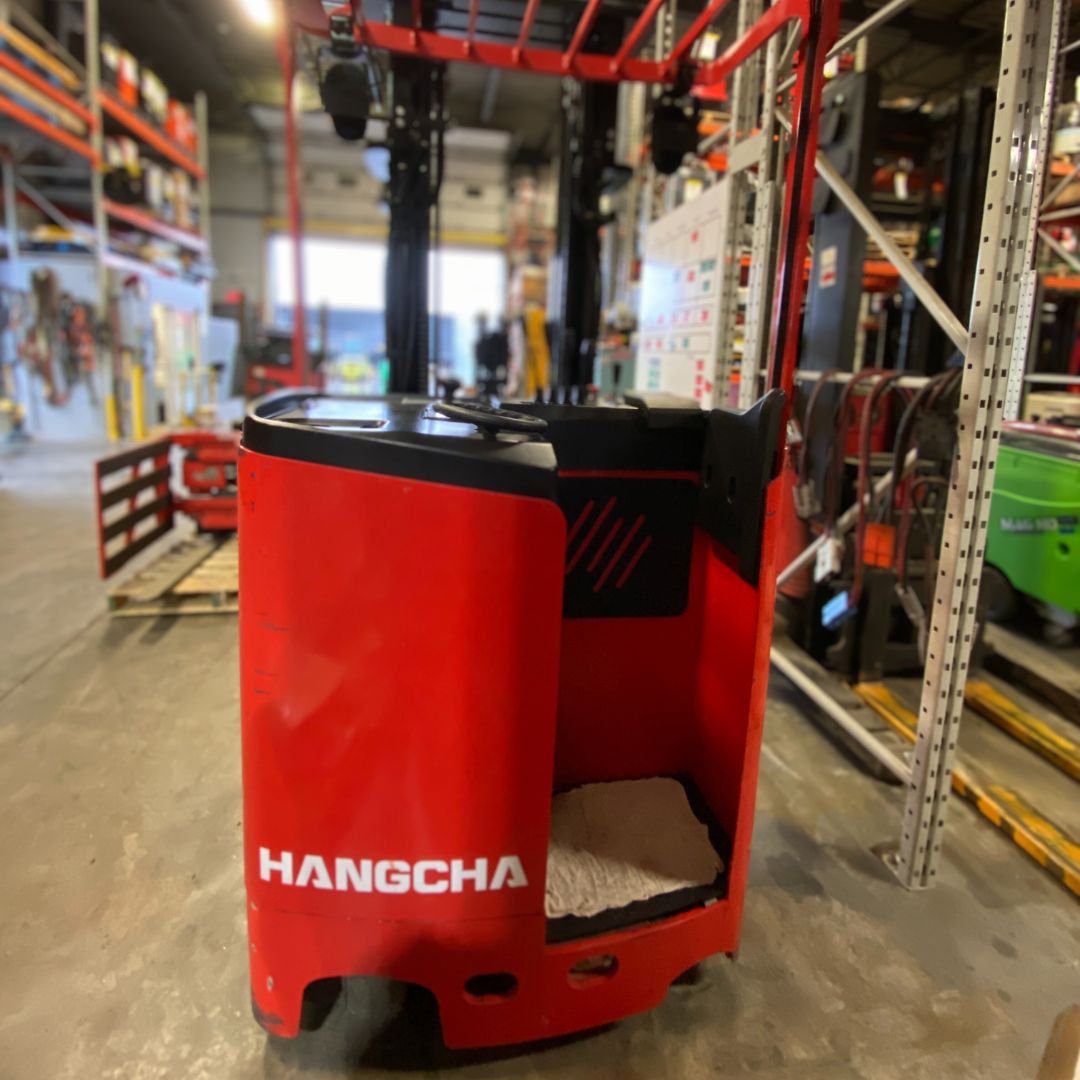

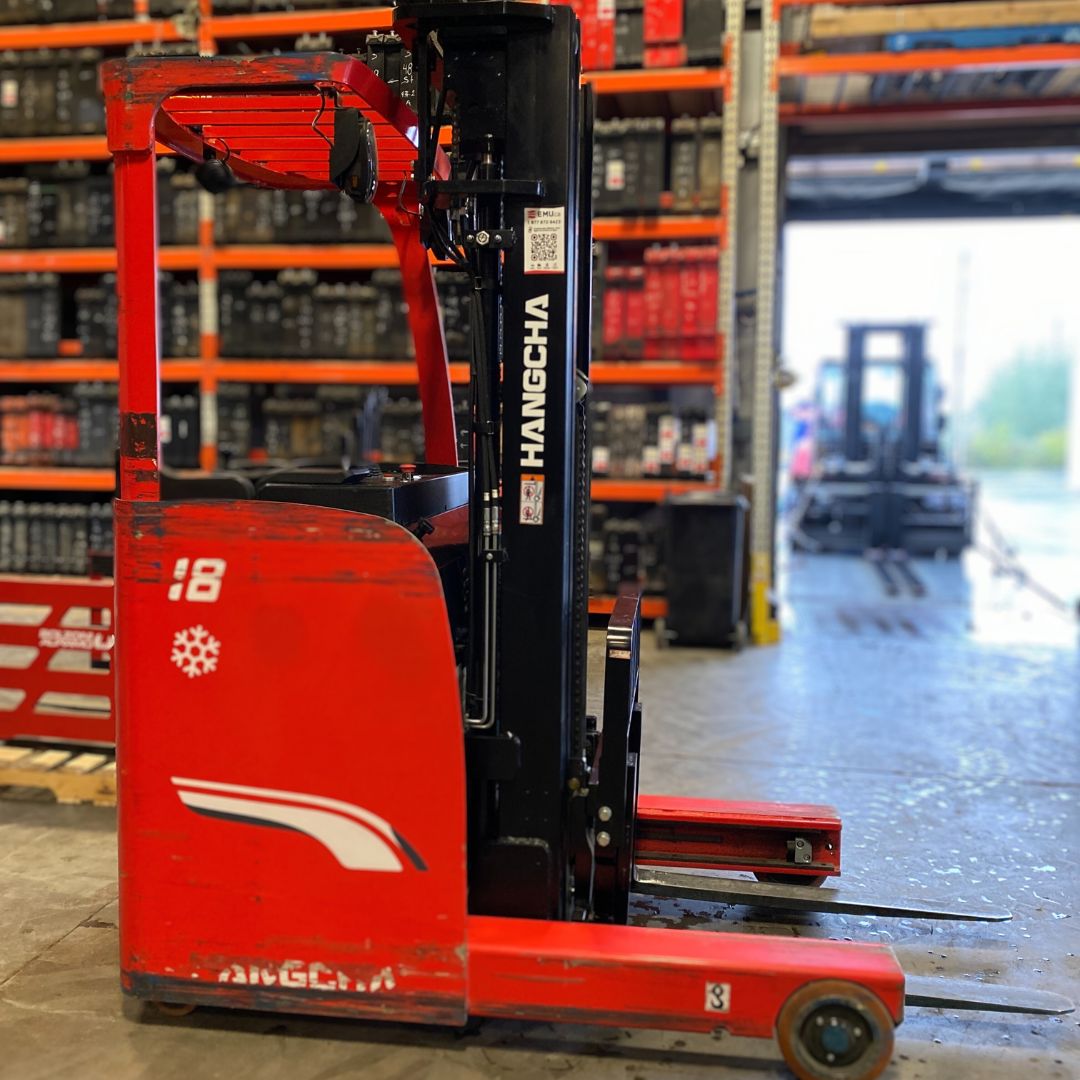

Hangcha Forklift - 3500 lb - CQD18

Brand: Hangcha
Model: CQD18-AC2S
Capacity: 3500 lb
Mast: 95x216(3)
Year: 2023
Fork Length: 42 in
Full Fork Sideshift
Driving Direction: Automotive

Electrical System: Solid-State

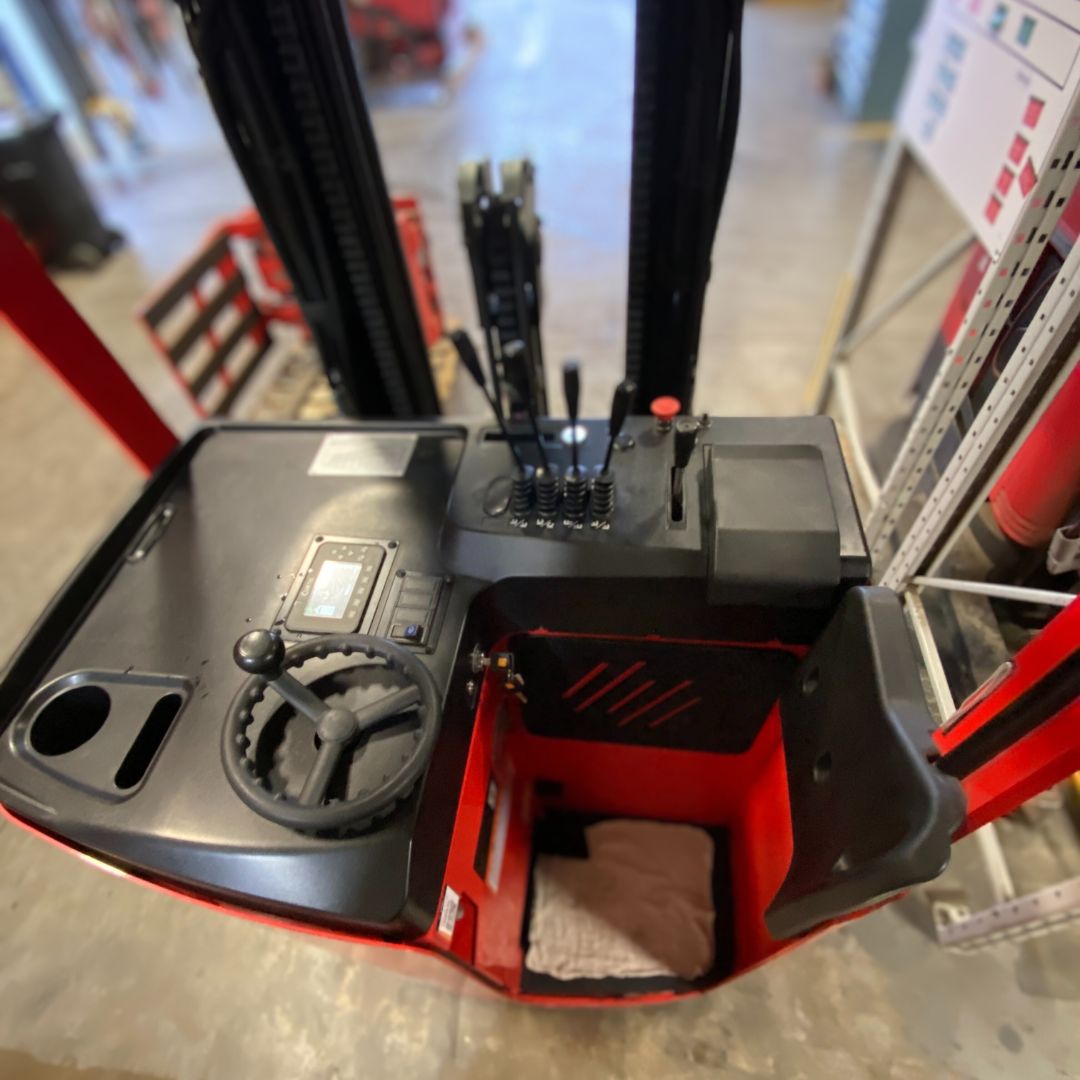

Integrated Code Display on Dashboard
Hour Meter
Battery Discharge Indicator
Low Voltage Lift Cut-Out
Traction Motor: AC
Lift Motor: AC
Battery Connector Type: SB, Amperage: 350, Color: Gray

Hook Fork Carriage
Load Backrest: 33 in
Total Hydraulic Function(s): 4
Auxiliary Carriage Function(s): Internal, 1
Fork Tilt

Horn: Reverse
Fourth Safety Post (Right)
Operator Guard: None
Power Assist: Hydraulic
Front and Rear LED Work Light
Amber LED Strobe Light
Rear Blue Safety Light
Manual: Service & Operations

Electrical System Voltage: 48 volts
Mast Height in Closed Position: 95 in
Maximum Fork Height: 216 in
Overall Truck Height: 95 in
Mast Type: Full Free Lift
Number of Mast Sections: 3
Carriage Width: 30.625 in
Carriage Width (excluding side rails): 43 in
Outside Side Rail Width: 42.5 in
Inside Side Rail Width: 29.75 in
Carriage Length (Back to Front of Forks): 53 in
Carriage Length (Back to Front of Load Wheels): 74 in
Unladen Weight without Battery: 4596 lb
Battery Weight Minimum: 1069 lb, Maximum: 1245 lb
Battery Compartment Dimensions: Length: 38 in, Width: 15.25 in, Height: 23 in
