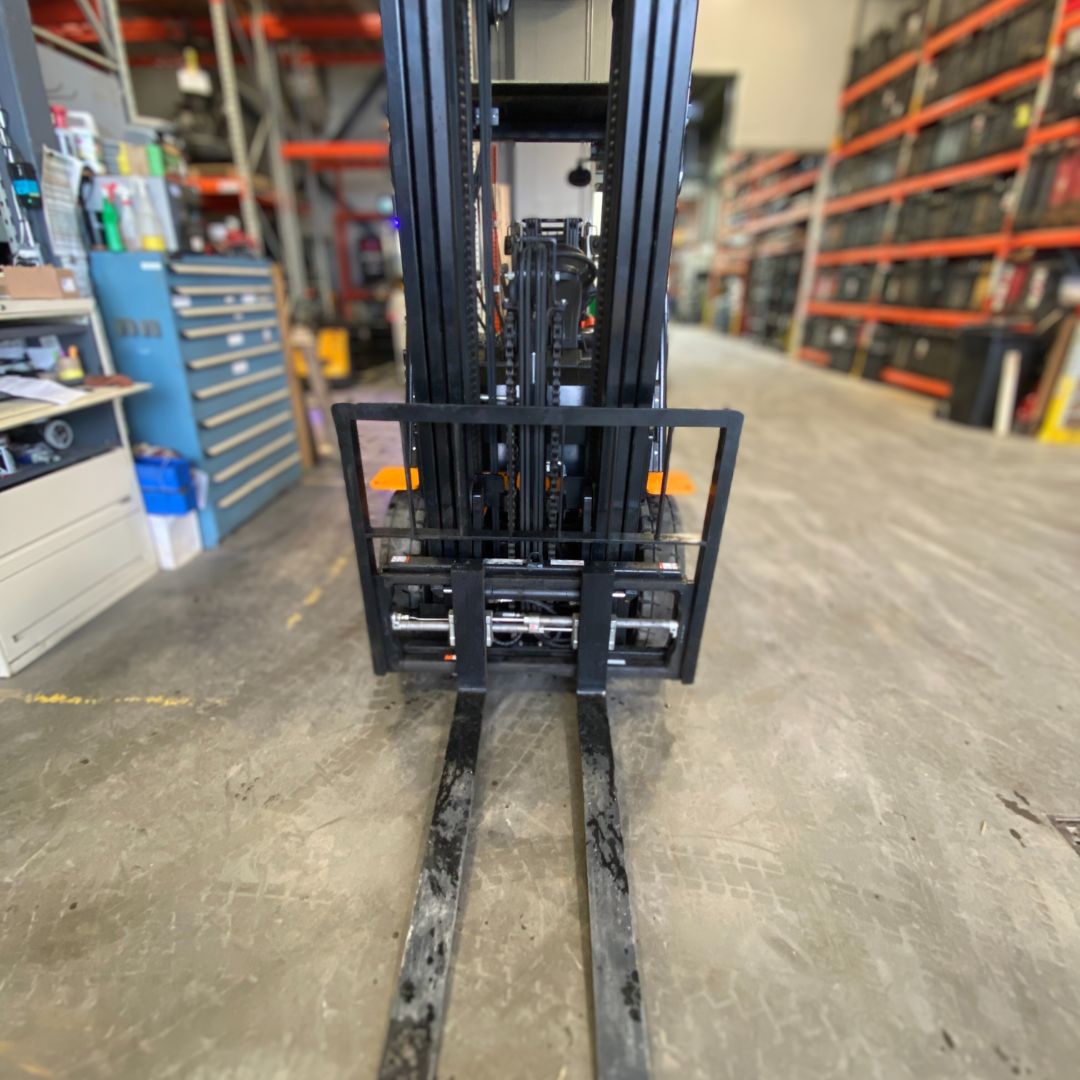

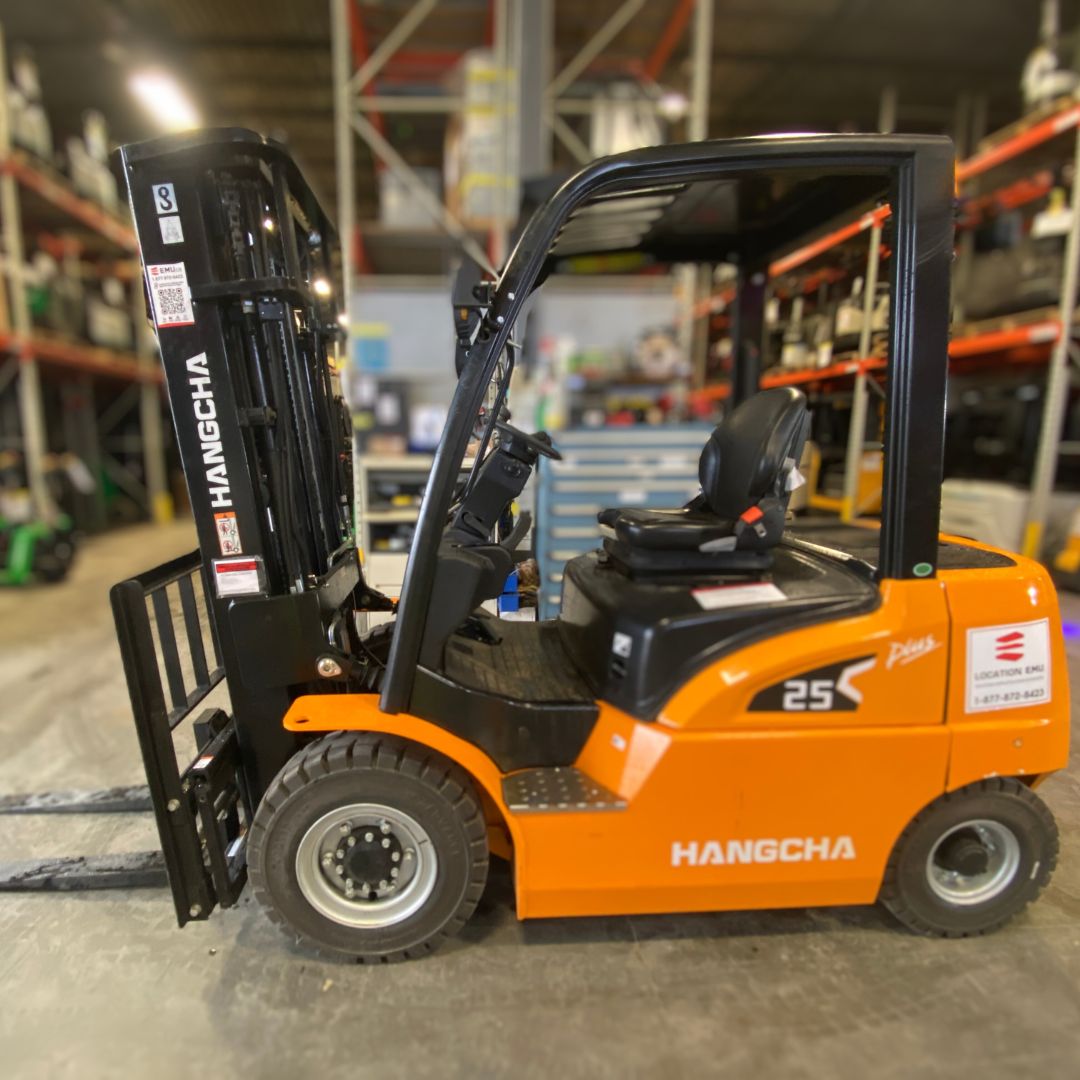

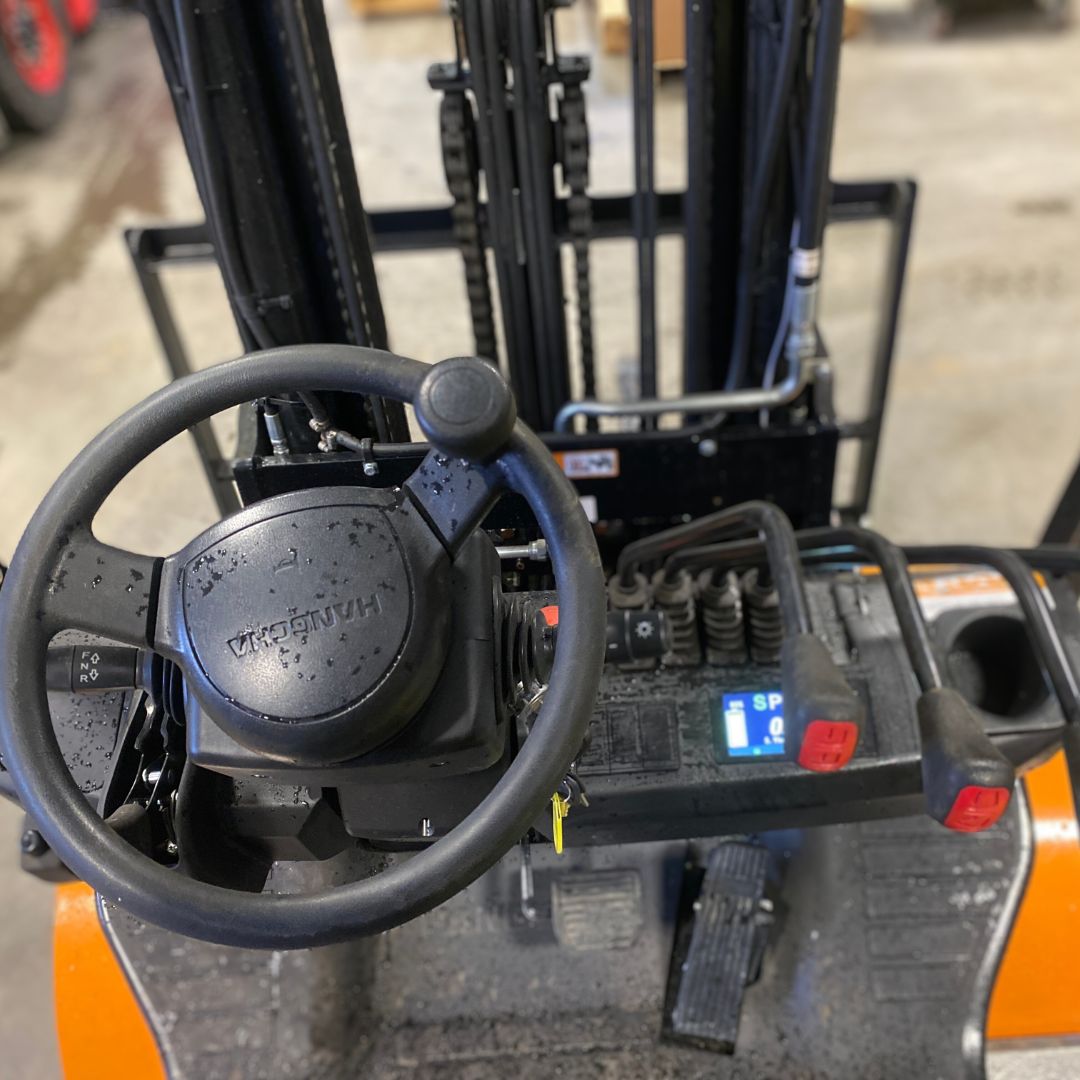

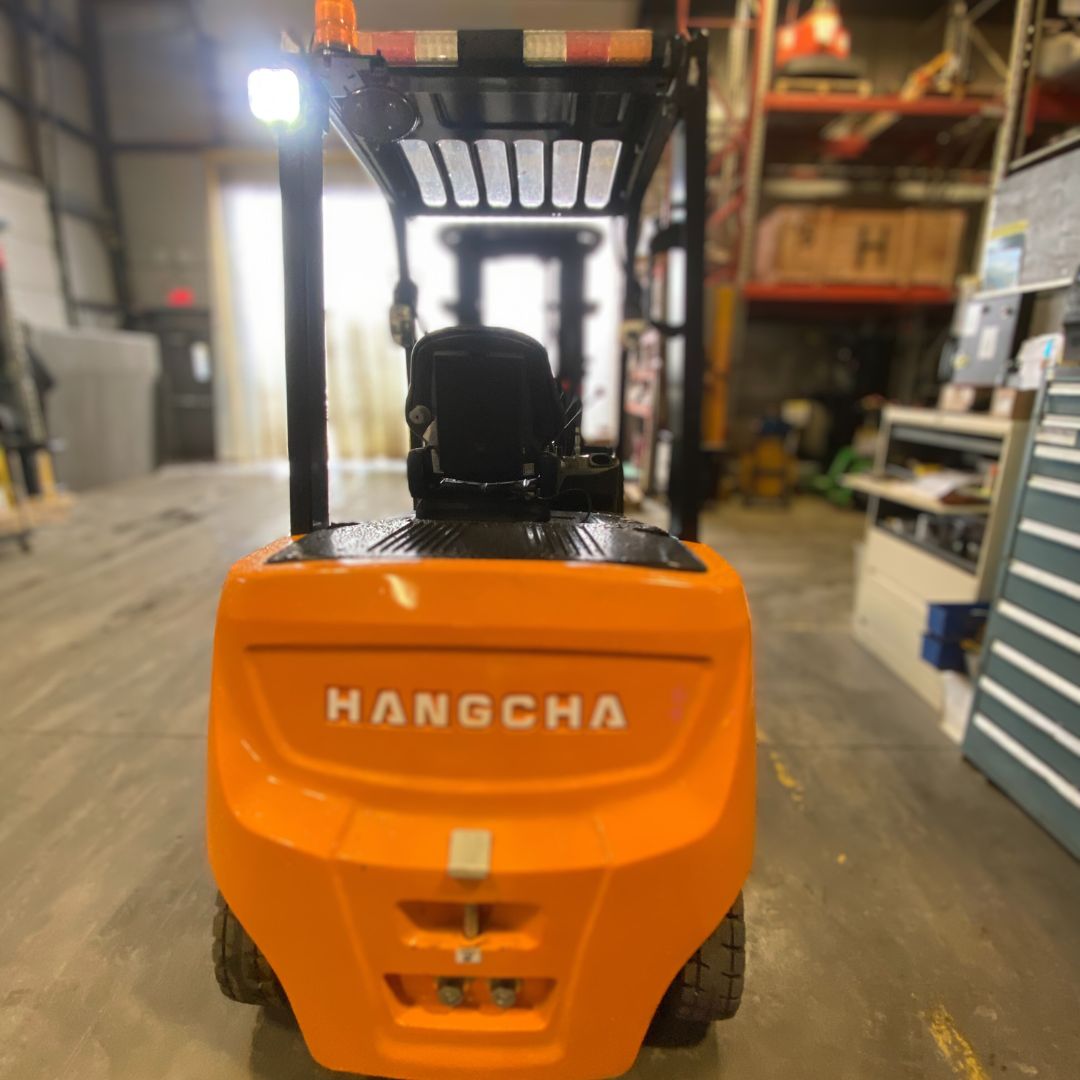

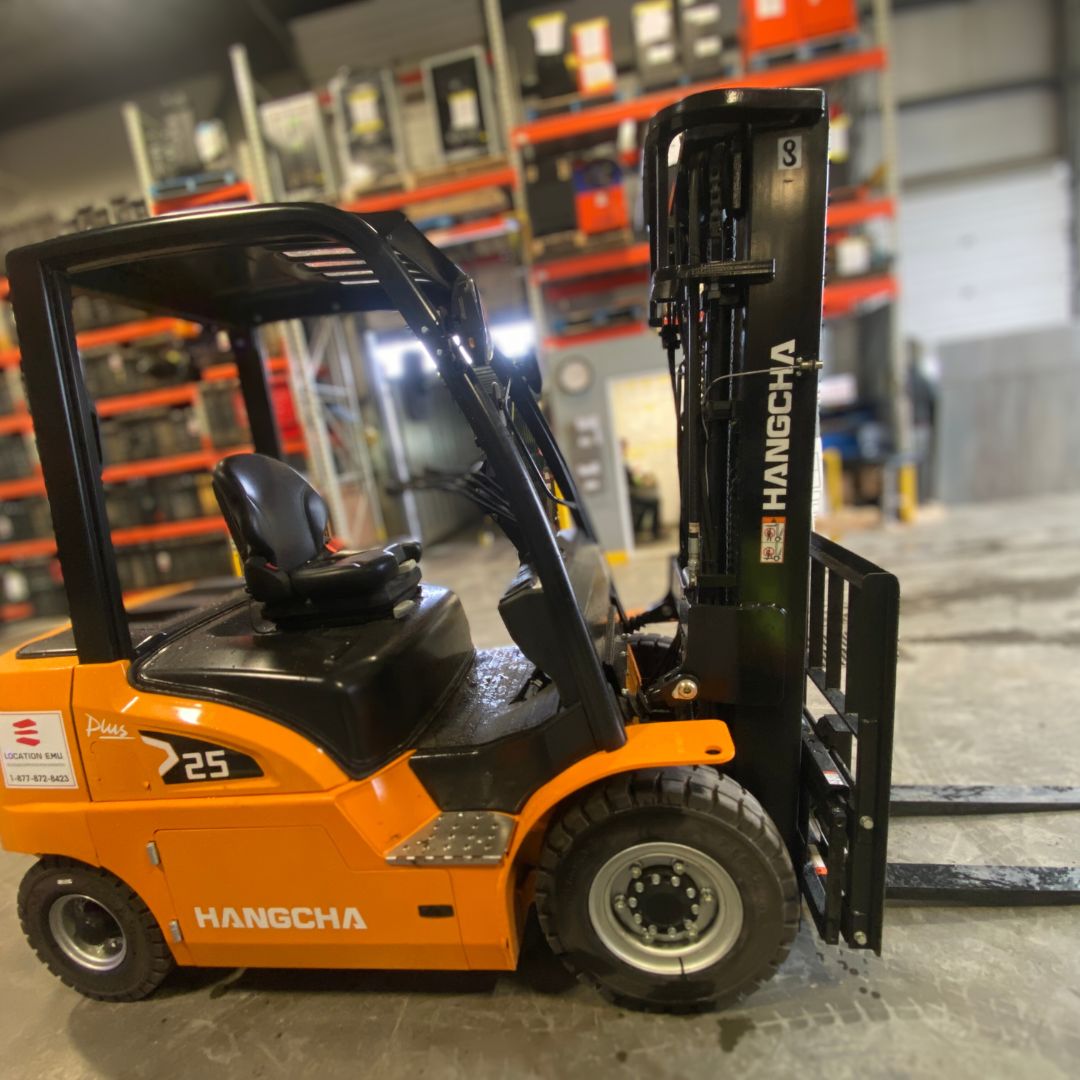

Hangcha Forklift - 5000 lb - CPD25

Brand: Hangcha
Model: CPD25-XY2G-SI24
Rated Capacity: 5,000 lbs
48-inch Forks
Side Shifter and Positioner

Electrical System: Transistorized
Dashboard Integrated Code Display
Hour Meter
Battery Discharge Indicator
Traction Motor: AC
Drive Motor: AC
Automatic Deceleration During Turns

Fork Carriage
Total Hydraulic Function(s): 4
Number of Auxiliary Function(s): Internal: 2
Front and Rear Mast Tilt

Front Tire: Puncture-Proof
Front Tire Composition: Black Rubber
Front Tire Traction Type: Front Wheel Drive
Front Tire Size: 7.00-12
Rear Tire: Puncture-Proof
Rear Tire Composition: Black Rubber
Rear Tire Traction Type: Front Wheel Drive
Rear Tire Size: 6.00-9

Horn: Reverse
Rear Grab Handle with Horn
Seat Belt
Suspension Seat
Steering Column Tilt
Front/Reverse Control: Selector Arm
LED Brake Light
White LED Reverse Light
Amber Front and Rear LED Turn Signal Light
Front LED Work Light
Rear LED Work Light
Amber Strobe Light
Blue Rear LED Safety Light
Rearview Mirror
Tow Pin
Operation & Service Manual

Electrical system voltage: 309 volts
Mast height in closed position: 87.2 in
Maximum fork height: 185 in
Overall truck height: 87.2 in
Mast type: full free lift
Number of mast sections: 3
Fork carriage width: 40.87 in
Forklift width: 47 in
Forklift length (from back to front of forks): 101 in
Minimum battery weight: 871 lbs
Battery dimensions: 45.03 x 28.46 x 13.30 in
306V/100 Ah lithium battery
Battery removal from the side (using a pallet jack)
