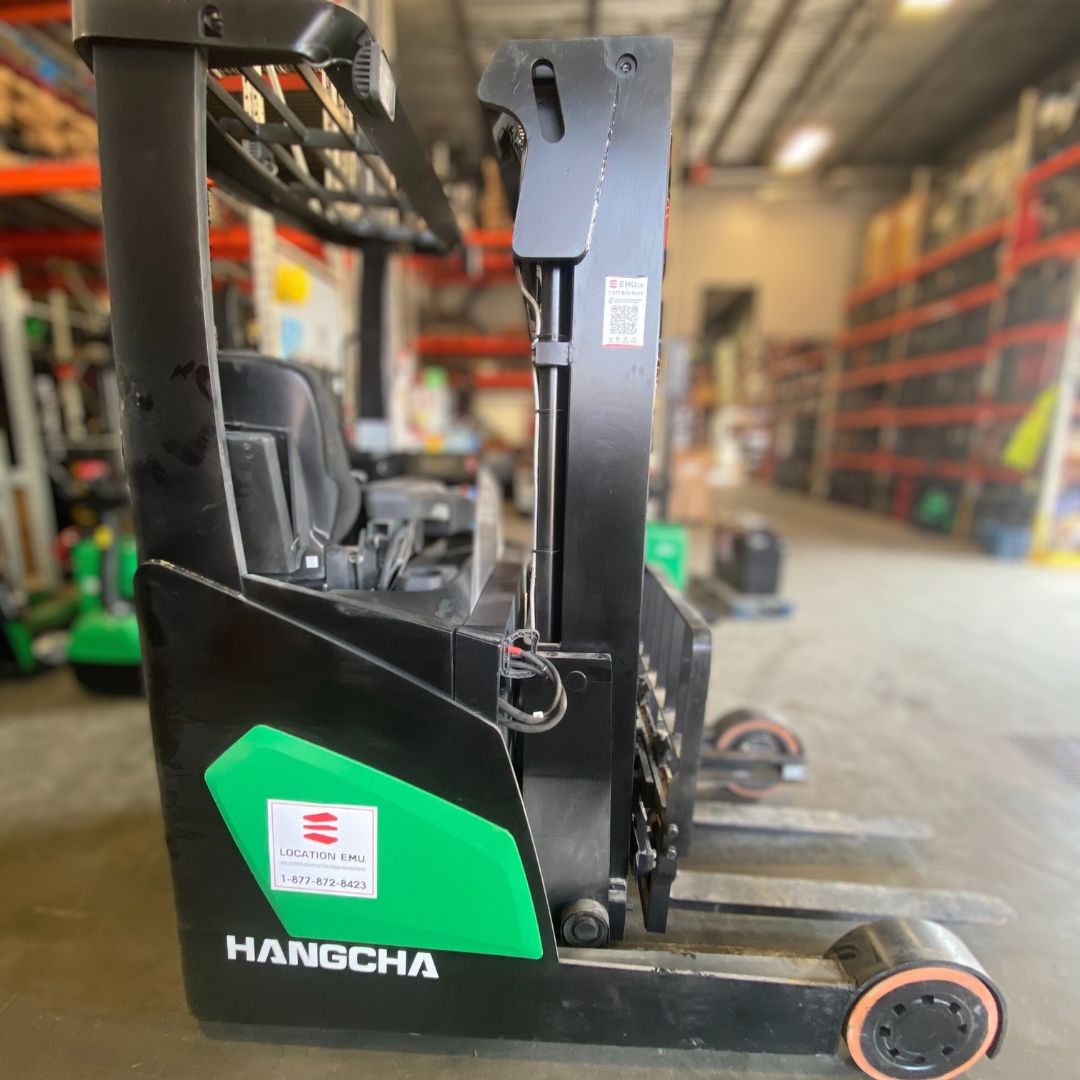

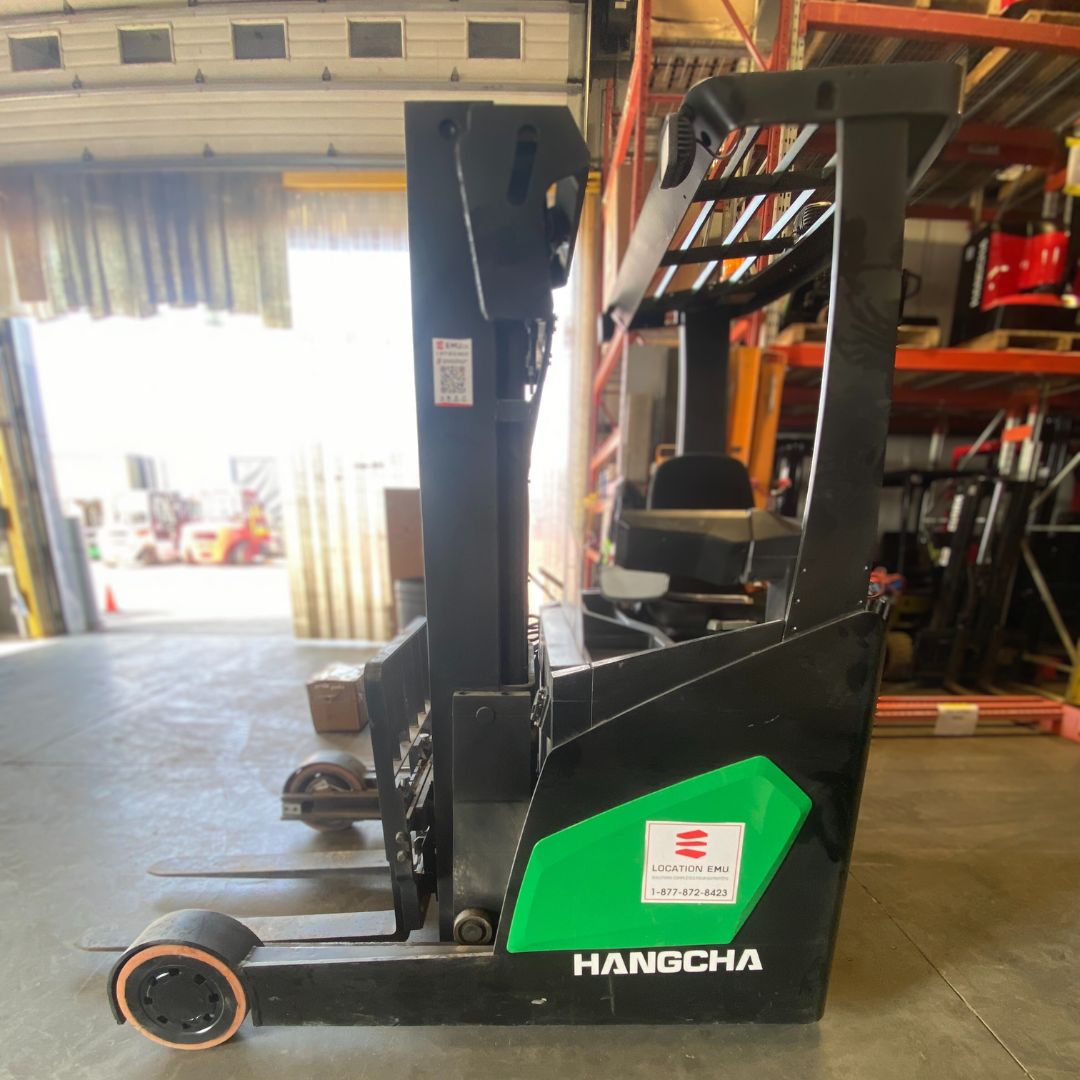

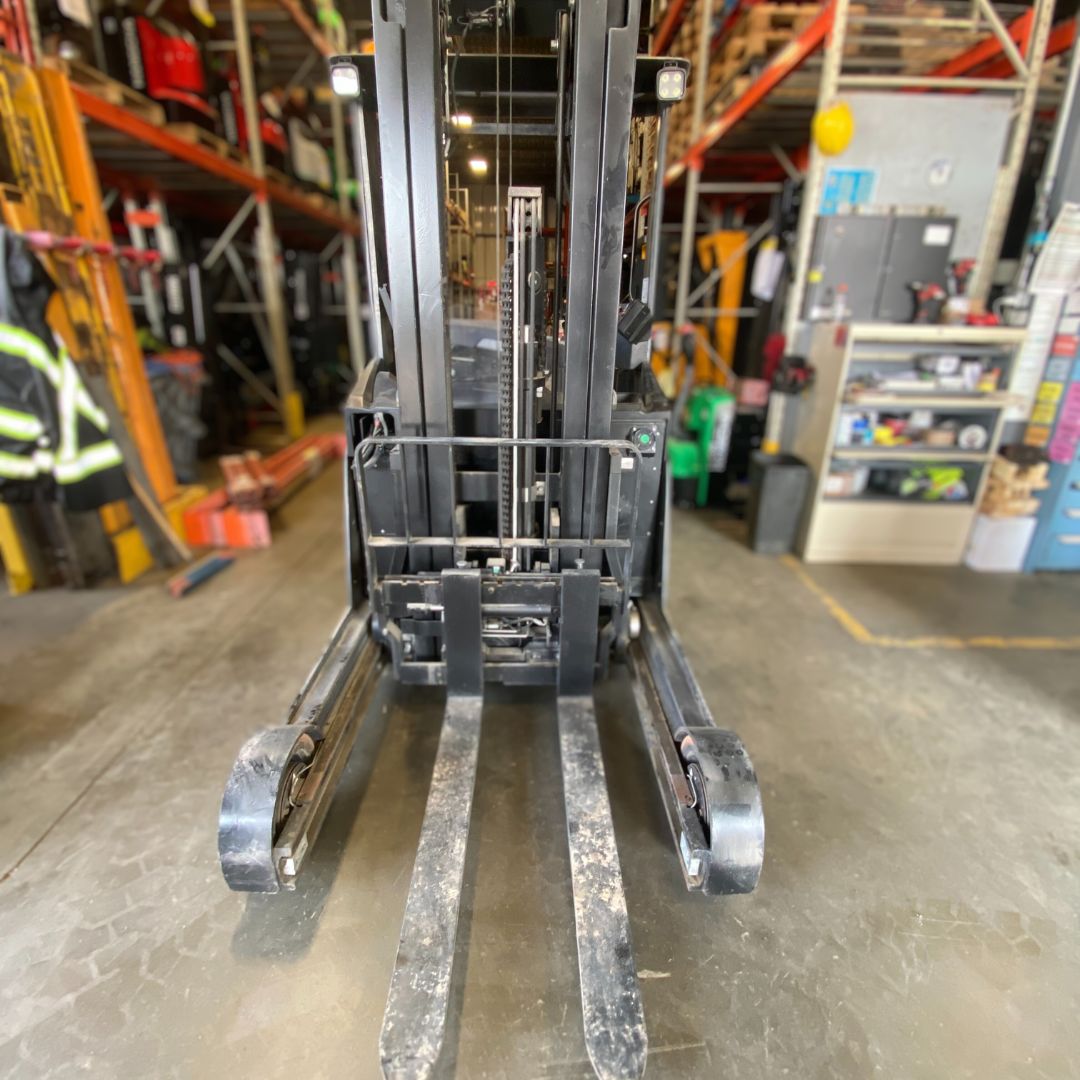

Hangcha Forklift - 5500 lb - CQD25

Brand: Hangcha
Model: CQD25-XC4D-SI
Capacity: 5500 lb
Mast: 91.1 x 197(3)
Fork Length: 42 in
Fork Side Shift
Operator Position: Seated

Electrical system: Transistorized
Dashboard integrated code display
Multi-display instrument panel
Hour meter
Battery discharge indicator
Fork carriage: 2
Load backrest
Total number of hydraulic functions: 4
Number of auxiliary functions on the carriage: Internal: 1

Fork tilt
Control with mini-levers (fingertips)
Automatic fork positioning (Tilt Assist)
Automatic sideshift positioning
Height selector with height display*
*Possibility of limiting the height below the free lift
Power assisted driving: Electronic (360 degrees)
Adjustable steering and pedal height
Lift limiter (height)
Electric lowering system that limits the forks above the side members
Audible travel warning
Third safety post (left)
Fourth safety post (right)
Suspension seat
Operator protection: glass
Front LED work light
Amber LED strobe light
Blue LED safety light
USB port
Hydraulic oil filter warning light (backflow and suction)
Mirrors
Manual: operations

Electrical system voltage: 80 volts
Mast height in closed position: 91.1 in
Maximum fork height: 197 in
Overall truck height:
Mast type: full free lift
Number of mast sections: 3
Carriage width: 32.6 in
Carriage width (excluding side rails): 50 in
Outside side rail width: 50 in
Inside side rail width: 37 in
Carriage length (from back to front of forks): 55 in
Carriage length (from back to front of load wheels): 100 in
Unladen weight including battery: 9300 lb
Minimum battery weight: 795 lb
